Advantages:

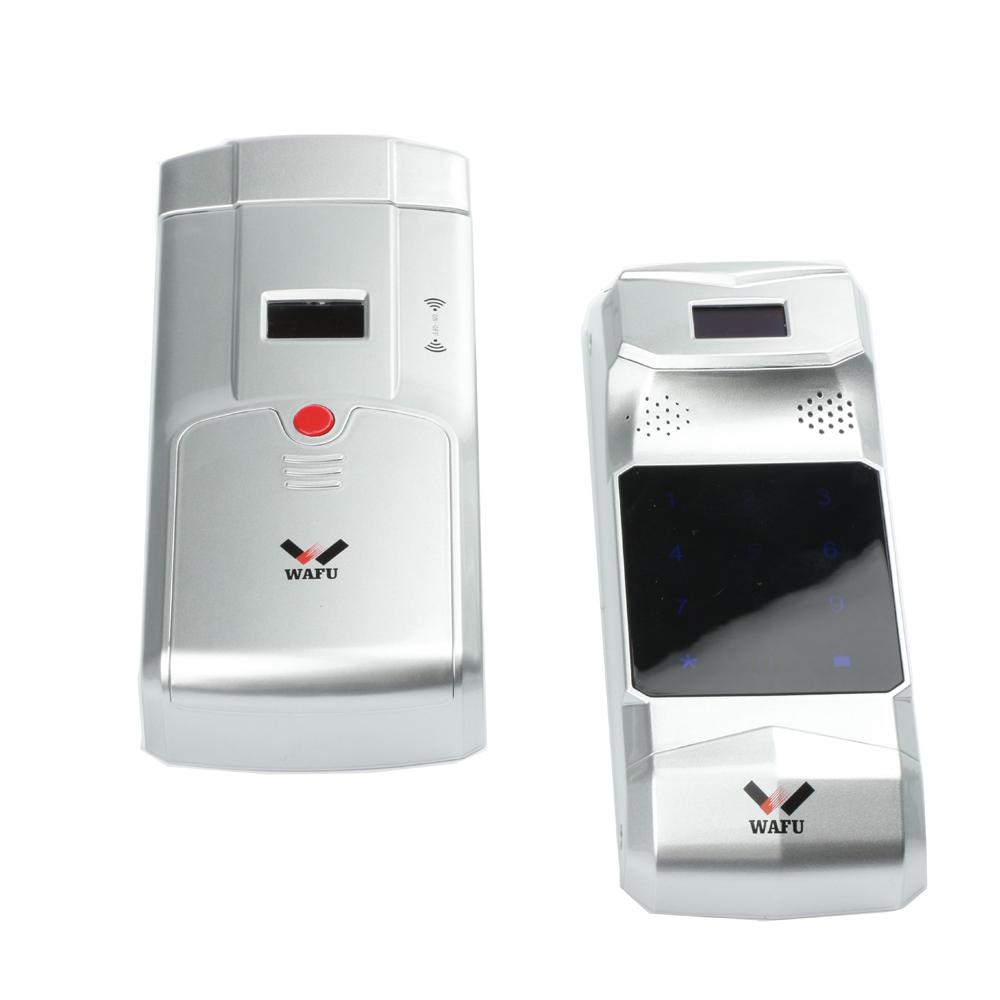

1. Internal and external split structure:
The main lock is installed indoors, and the fingerprint keypad is installed outdoors, convenient and safe.
2. Dual System Design:
It is with double systems, it can works with the standby system, when the main system broken down.
3. Dual Circuit Design:
There are two circuit, they work independently.
4. Multiple Operation Methods:
It can be operated by remote keys, password, fingerprint, touch.
5. Touch Design:
It can be operated by touching the lock body indoors. And it can close automatically when close the door(optional).

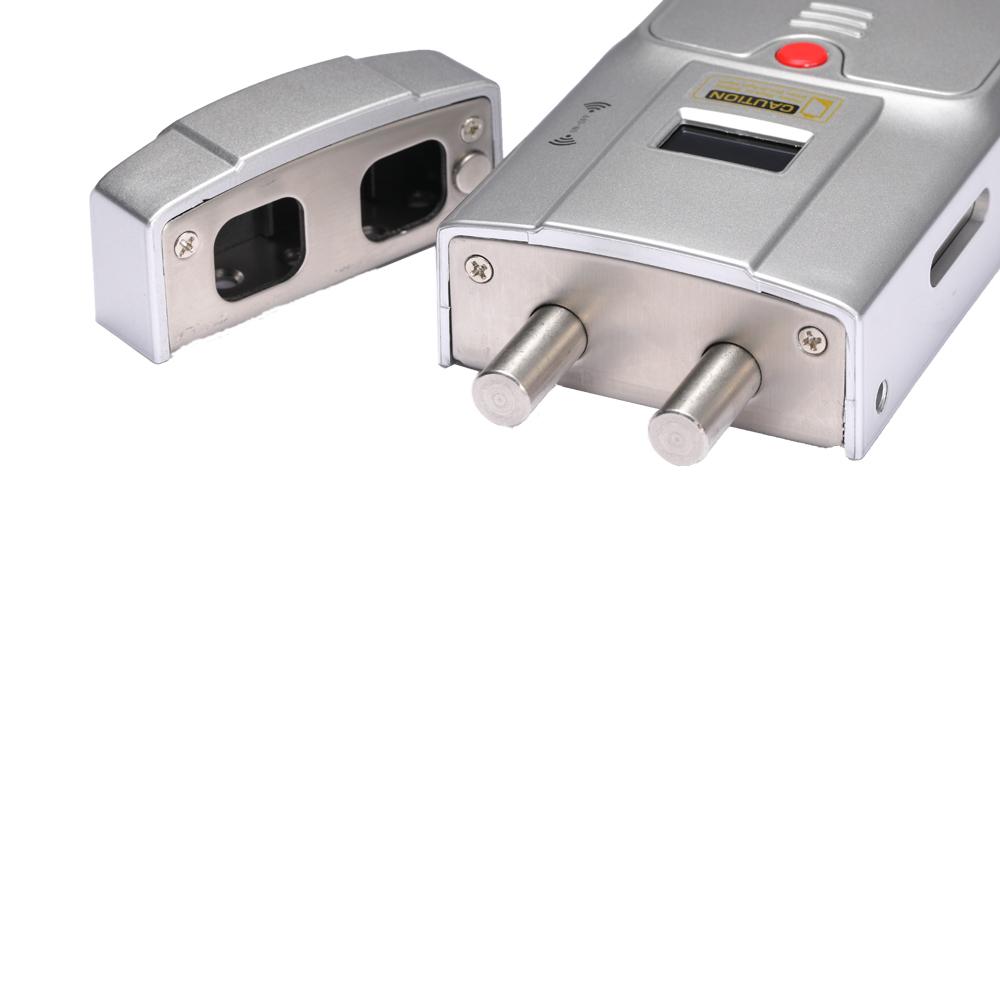

The Main Lock:
Power supply: double-battery power supply designed
When the battery is low, buzzer alarm, means that charge is necessary.
Remote control maximum Effective Range up to 15m(without obstacles).
When batteries power is lower than the minimum action power of the lock, it will open automatically, in order to prevent user can’t open the lock.
Reallocation coding function:If you lost the remote control. Just use a new remote control to set the code with lock.The lost one will be invalid.

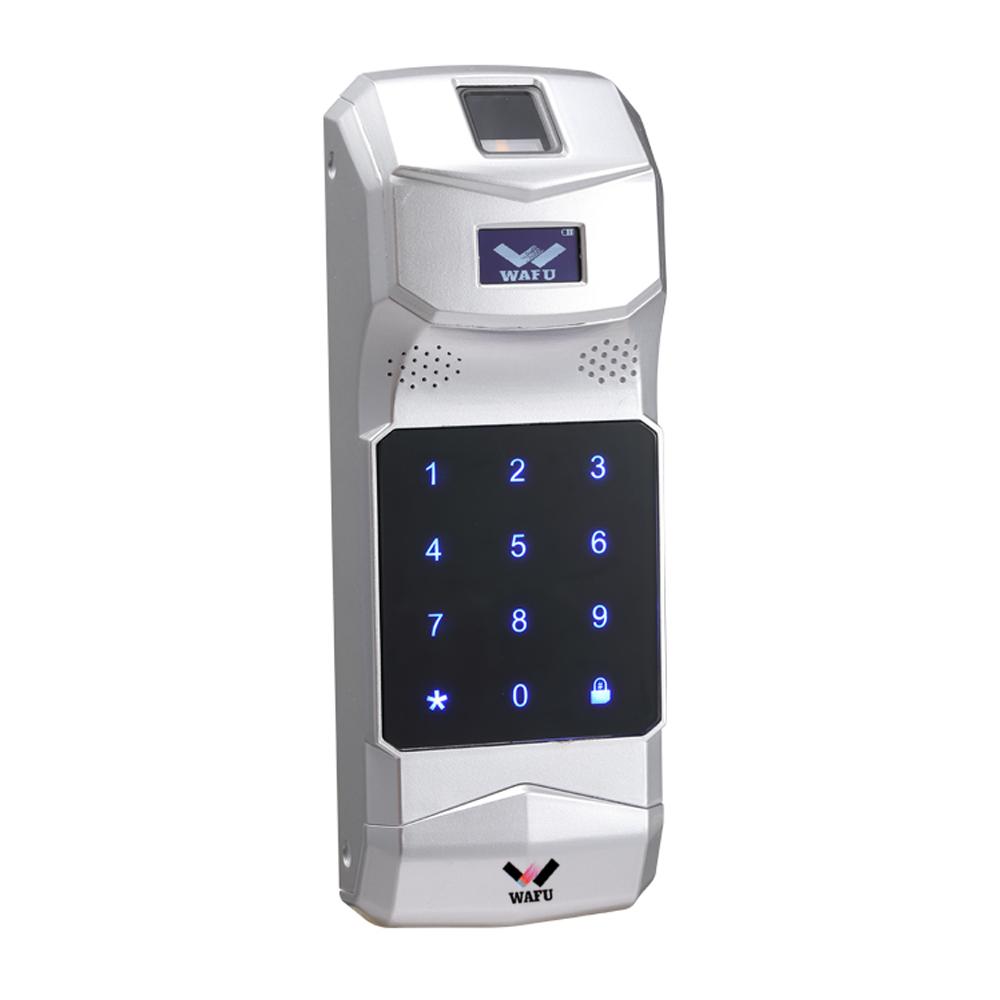

The Fingerprint Keypad:
Dual system run independently
the systems of fingerprint and password are running independently, non-interfering.
Energy-saving
It is supplied by 4*AA batteries, which can be used for about 1 year.
Intelligent Voice System
It will be prompt by voice to change batteries when it is with lower power
Intelligent Alarm System
The system will alarm and lock when enter invalid password several times.
Bilingual System
It can be changed between Chinese and English at any time
Anti-peep Phantom Password
It can be added several numbers, which can be operated as long as there is a correct password in front of it.
Combination Operated Mode
It can be operated by combining effective fingerprint user and password user
Specification of lock
Weight |
575(g) |
Size |
150*80*30(mm) |
Frequency |
433.92MHZ(±50KHZ) |
Sensing Range |
0.5-15(m) |
Operation Environment |
-20ºC~60ºC, 5%-60% |
Power Supply |
4* AA Batteries |
Battery Life |
about 1 year |
|
|
Specification of Fingerprint Keypad
Weight |
283(g) |
Size |
70*20*35(mm) |
Power Supply |
4*AA Batteries |
Battery Life |
about 1 year |
Error Rate |
0.001% |
Language |
Chinese/English |
Capacity |
100 groups |
Operation Methods |
Fingerprint/Password |
Operation Environment |
-10ºC~60ºC |
|
|
Specification of Remote Keys
Size |
60*30(mm) |
Function |
Unlock/Lock |
Standard Number |
2pcs |
Operation Humidity |
5%-60% |
Power Supply |
button battery |
Battery Life |
about 1 year |
Registeration Number |
20pcs at most |
|
|

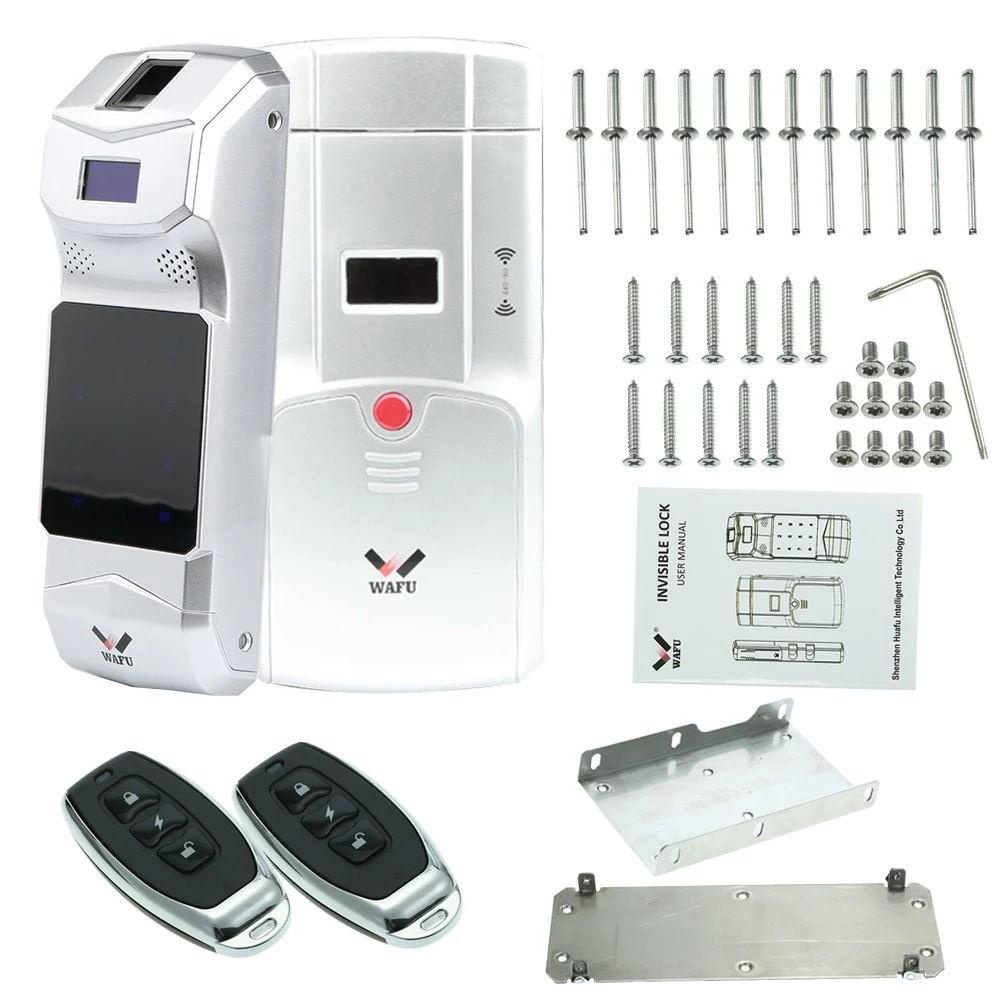

Packing List:
- 1 × main lock
- 1 × lock catch
- 2 × remote keys
- 1 × fingerprint keypad
- 1 × installation board of lock
- 1 × installation board of fingerprint keypad
- 1 × user manual
- 1 × other accessories
